Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

CCphotos
CCphotos
CCphotos

HARDWARE FEATURES

Interface

1 × 10/100 Mbps LAN/WAN Port

Button

Reset Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 5V 2A

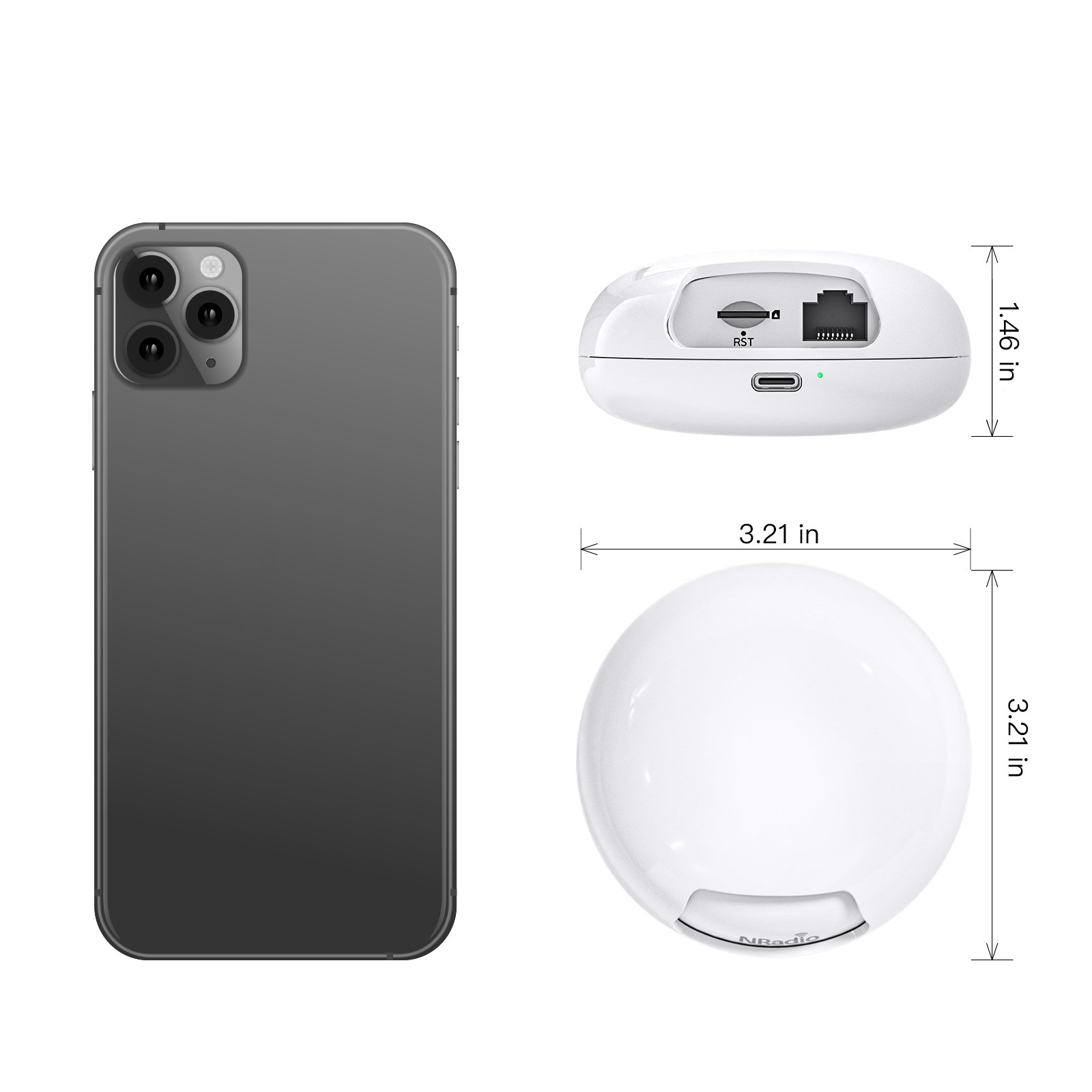

Dimensions ( W x D x H )

81.6*81.6*37 MM(3.21*3.21*1.45 in)

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

4×external high gain antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Wi-Fi Max.Associated Clients

64

WAN Failover

Yes

Wireless Security

WPA/WPA2, WPA-PSK

Modulation technology

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

MIMO-OFDM: MCS 0-31

MIMO-OFDM (11ac): MCS 0-9

CELLULAR FEATURES

Module

Quectel

Band

LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

Data Speed

LTE DL/UL: 150Mbps/50Mbps

DC-HSDPA+DL/UL: 42Mbps/5.76Mbps

WCDMA: 384Kbps/384Kbps

SOFTWARE FEATURES

Channel adjustment

Support

Power adjustment

Support

Access restrictions

Support

SSID Hidden

Support

Speed limitation

Support

Black and white list

Support

User isolation

Support

Bandwidth limit

Support

DHCP

Support

VPN

Support

NRadio Cloud

Support NRadio Connection and realize remote management.








Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
